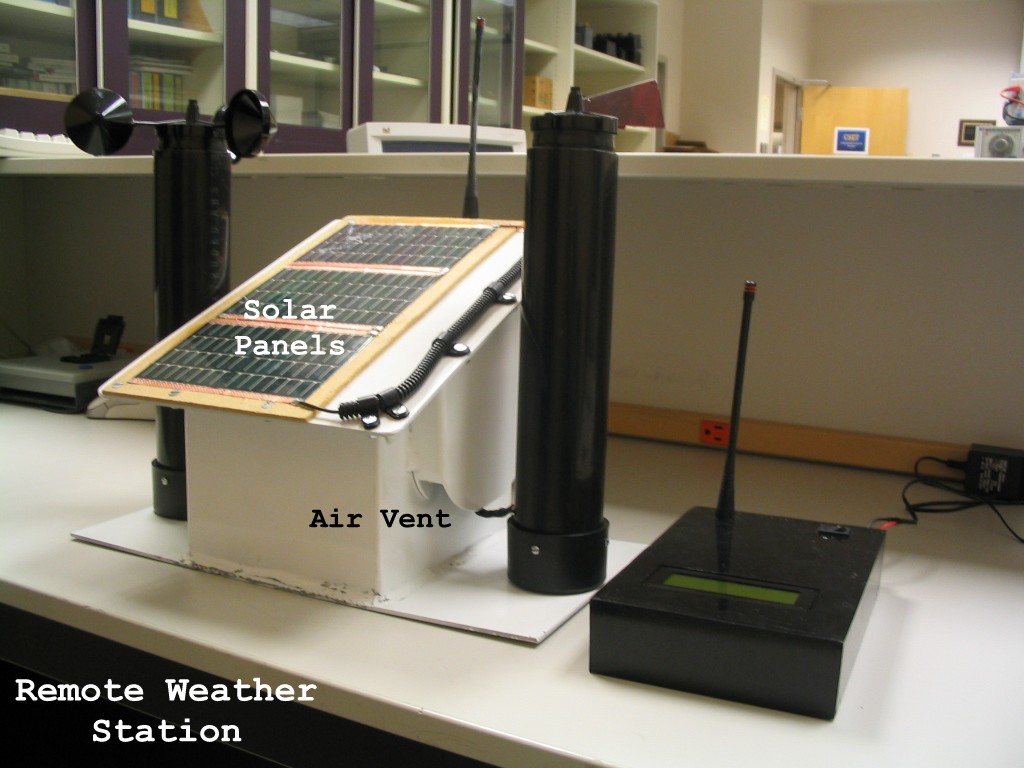

Remote Weather Station Application

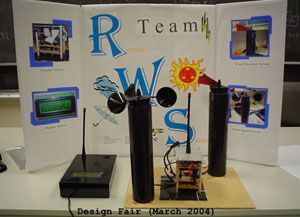

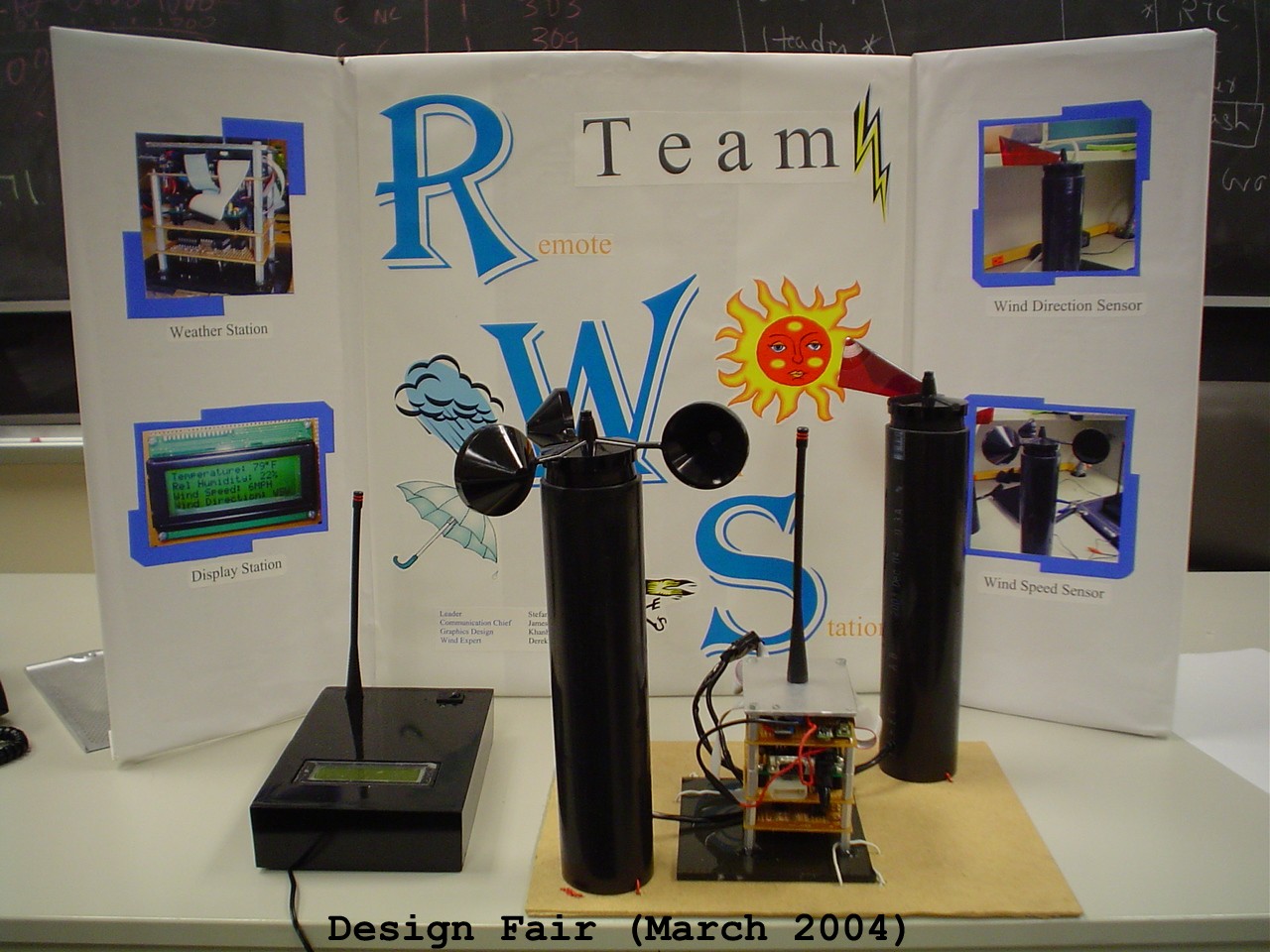

The Remote Weather Station (RWS) is a computerized weather monitoring system using MINI-MAX/51-C micro-controller board from BiPOM Electronics and various sensors. RWS consists of  two separate modules ( display module and weather module ) that are wirelessly linked together. RWS was developed by an ambitious team of students at Oregon Institute of Technology. We express our gratitude to them for allowing us to post detailed information and pictures about the RWS on our website.

RWS is capable of measuring the following weather parameters in real-time:

1- Outside temperature
2- Relative Humidity
3- Wind Speed
4- Wind Direction

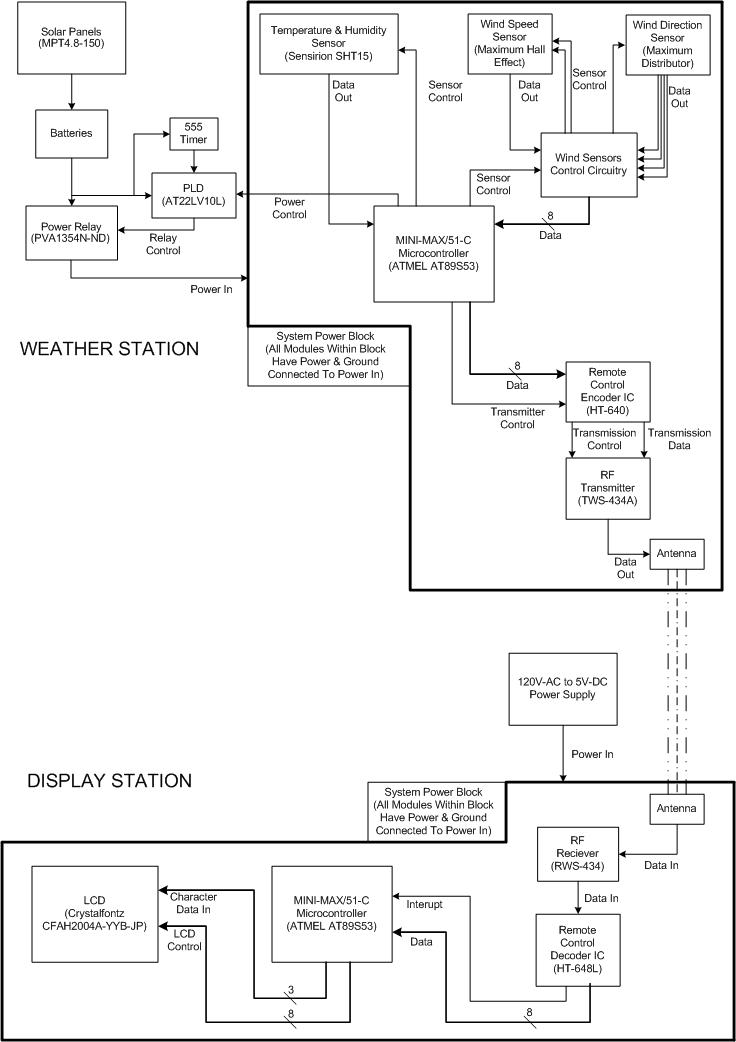

Block Diagram
Part List

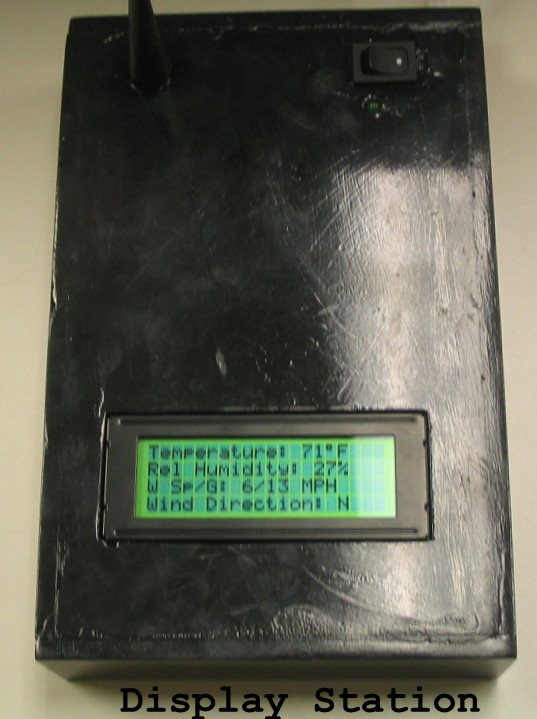

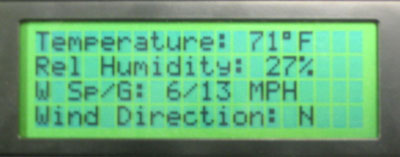

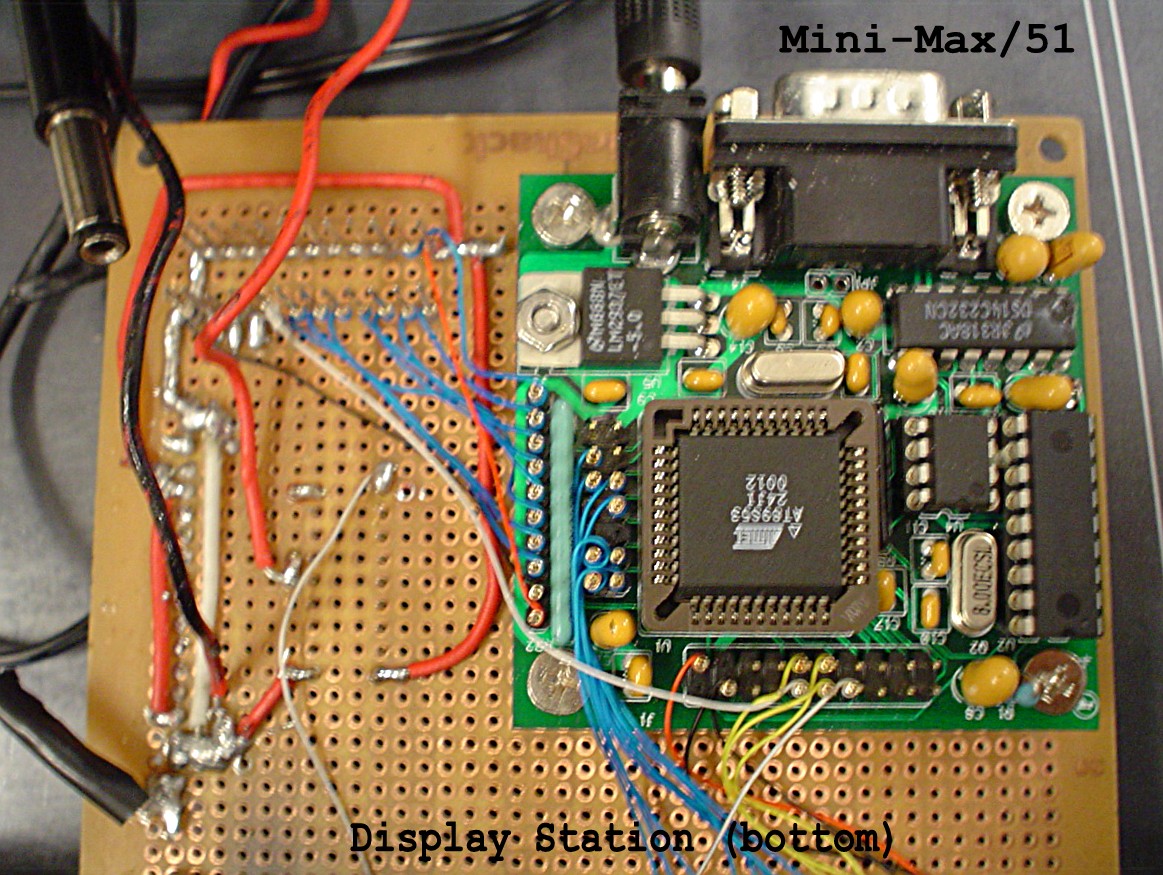

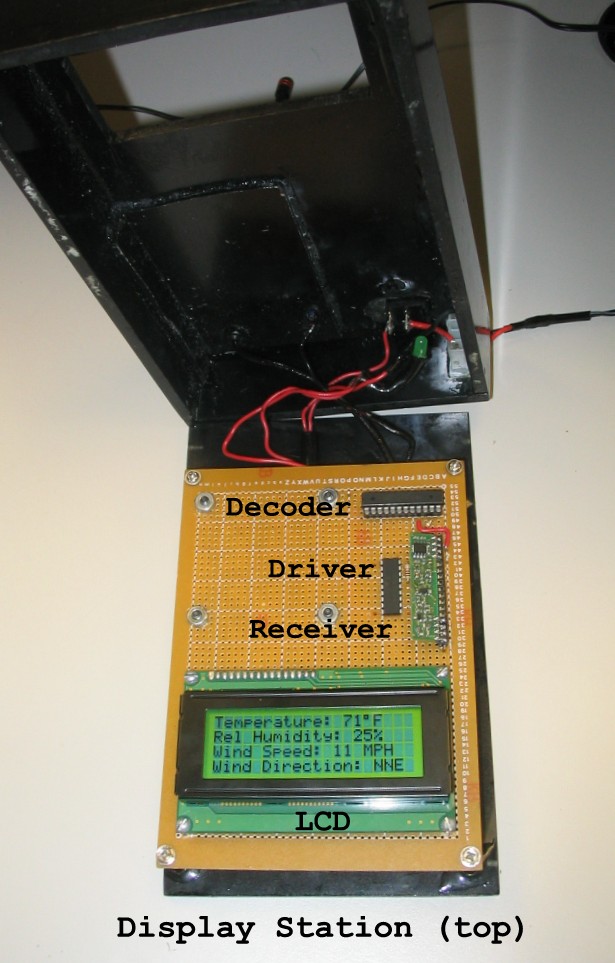

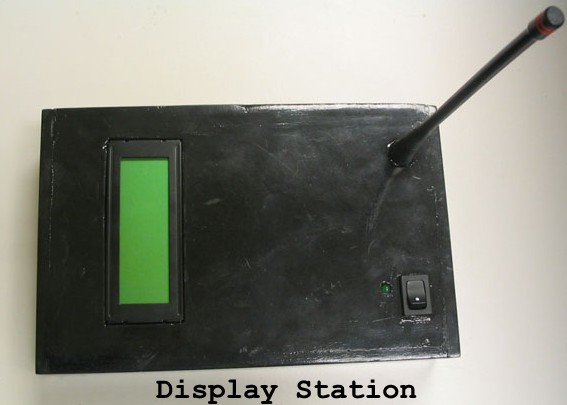

Display Module
Firmware of display module

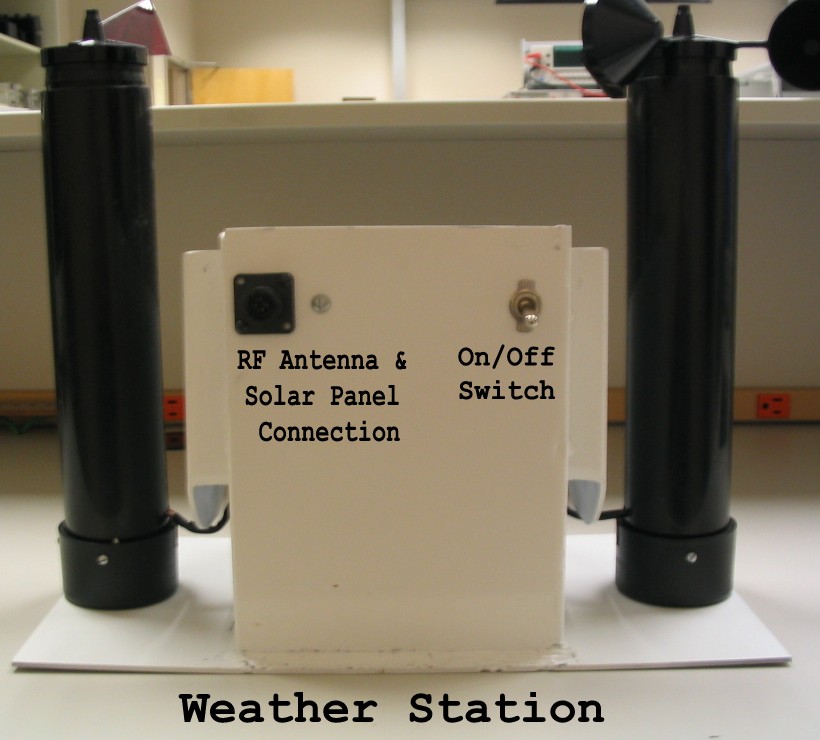

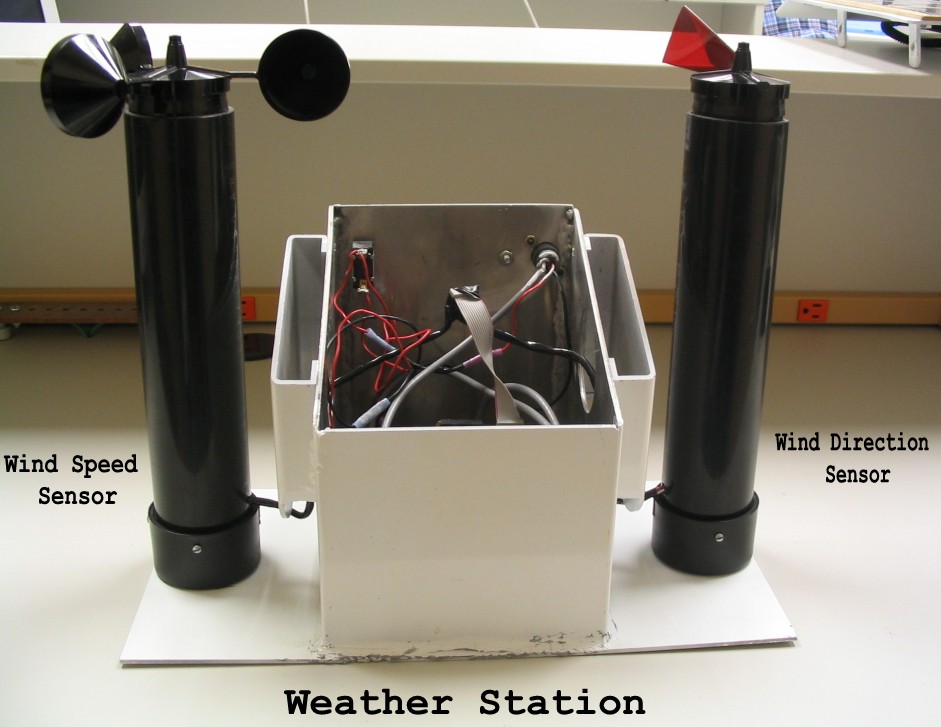

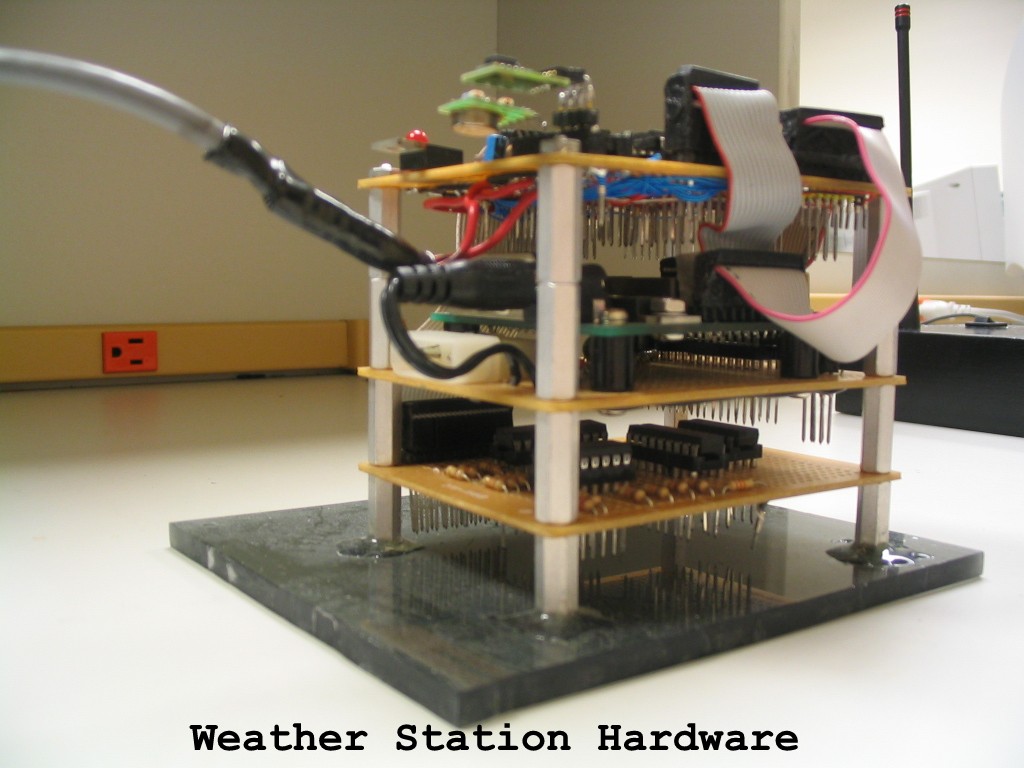

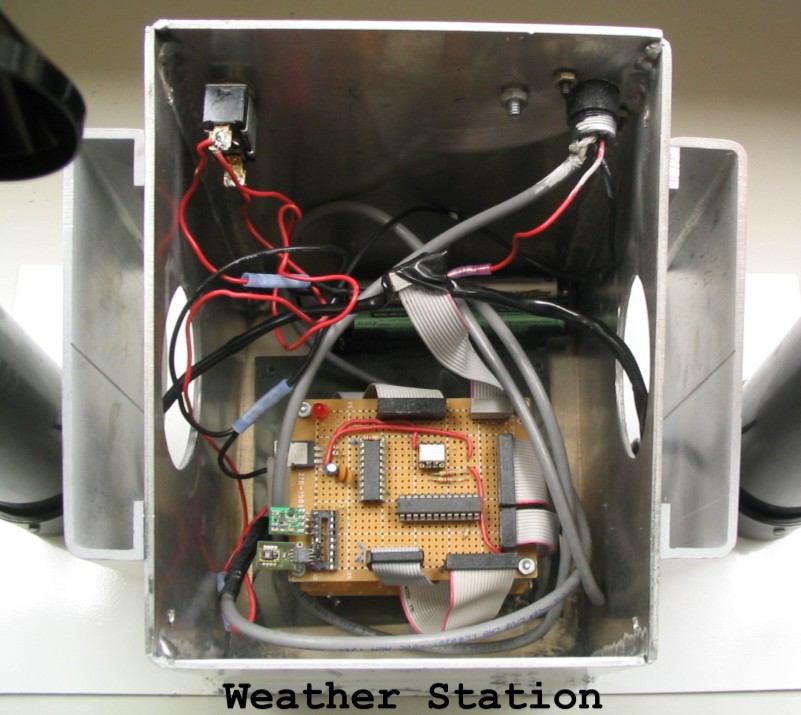

Weather Module
Firmware of weather module
