Retrieves the analog value from a 89C2051 or 89C4051.

Syntax

var = GETAD2051()

Remarks

var The variable that is assigned with the A/D value
The GETAD2051() function is only intended for the 89C2051 and 89C4051. It uses the analog comparator of the chip.

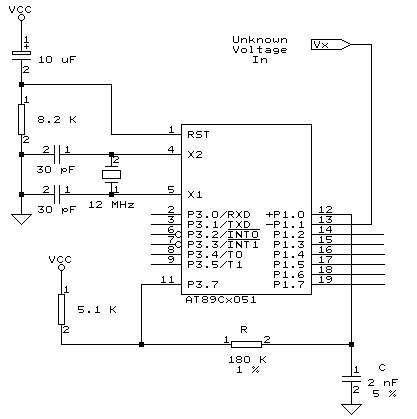

Connect the hardware as following :

See also

Example
