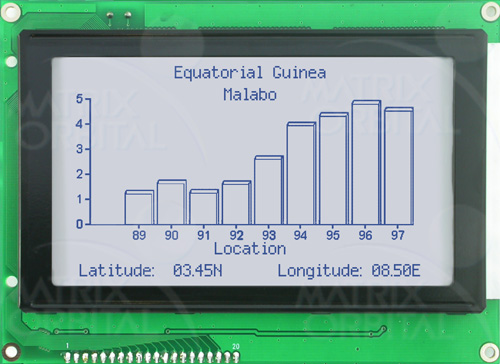

GLK240128-25-FGW Display Module

GLK240128-25-FGW


The GLK240128-25 is a large graphic display that gives you the room to display many pictures and text all at the same time. Our graphic displays offer you high speeds and an easy to use command interface. This gives you the flexibility to quickly download high quality fonts in any size, style or language, and create graphics using primitives such as bitmaps, pixels, lines, rectangles and bar graphs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPON/A
Advanced GPON/A

Appearance:


Module Size144.00 mm(L)×104.00 mm(W)×15.00 mm(T)
Pixels128(Rows)×240(Cols)
Active Area107.95 mm(L)×57.55 mm(W)
Background ColorWhite
Text ColorGrey

Interface:


RS2329600 to 115200
RS232 TTL9600 to 115200
Buffer120 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current47 mA
Backlight Current240 mA
Inrush CurrentN/A

Part No. Description Price
GLK240128-25-FGW Base Product $196
GLK240128-25-FGW-E Extended Temperature option. $206
GLK240128-25-FGW-V Wide Voltage power, +9 to +15Vdc. $199
GLK240128-25-FGW-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $237
GLK240128-25-FGW-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $216
GLK240128-25-FGW-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $226
