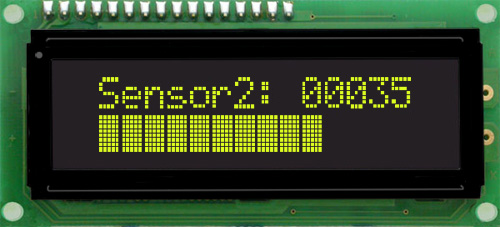

MOI-AL162A-XY3SE Display Module

MOI-AL162A-XY3SE


This 16 character by 2 line LCD display comes with an easy to use I2C communication interface, 3 General Purpose Outputs and has speeds up to 100 Kpbs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size80.00 mm(L)×36.00 mm(W)×25.60 mm(T)
Character Size5.55 mm(L)×2.95 mm(W)
Active Area56.20 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorYellow/Green
Format16 x 2

Interface:


Buffer128 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current33 mA
Backlight Current150 mA

Part No. Description Price
MOI-AL162A-XY3SE Base Product $40
