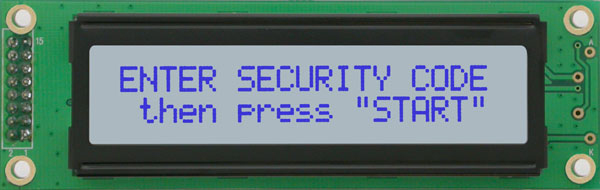

MOI-AL202C-WB3SJ Display Module

MOI-AL202C-WB3SJ


This 20 character by 2 line LCD display comes with an easy to use I2C communication interface, 3 General Purpose Outputs and has speeds up to 100 Kpbs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size116.00 mm (L)×37.00 mm(W)×27.50 mm(T)
Character Size3.20 mm (L)×5.55 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorWhite
Text ColorBlue
Format20 x 2

Interface:


Buffer128 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current39 mA
Backlight Current198 mA

Part No. Description Price
MOI-AL202C-WB3SJ Base Product $45
