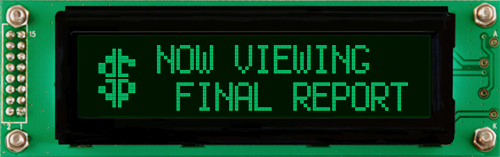

MOS-AL202C-FG3SE Display Module

MOS-AL202C-FG3SE


This 20 character by 2 line LCD display comes with an easy to use RS232 communication interface and 3 General Purpose Outputs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×21.73 mm(T)
Character Size3.20 mm(L)×5.55 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorGreen
Format20 x 2

Interface:


RS232 TTL9600 to bps
Buffer128 Bytes

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current39 mA
Backlight Current198 mA

Part No. Description Price
MOS-AL202C-FG3SE Base Product $40
