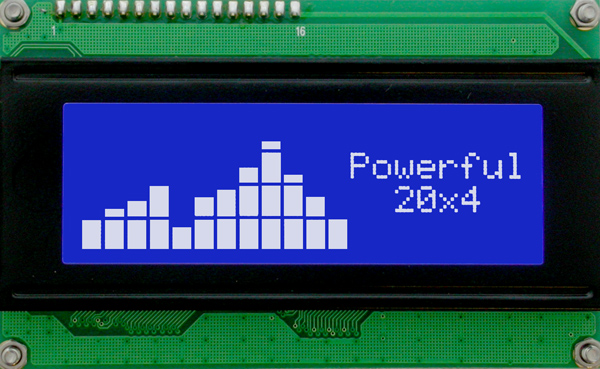

MOP-AL204A-BBTW-25E-3IN Display Module

MOP-AL204A-BBTW-25E-3IN


High quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller. Combine it with our X-board S-series to get your project off the ground faster. Add a mounting kit for easy mounting or a PC-Bay insert to make it PC-ready.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeBlue STN
PolarizerTransmissive
Character SetEnglish / European
ModelA
Viewing Angle12 O'Clock
ControllerS6A0069
NegGenN/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×15.00 mm(T)
Character Size4.75 mm(L)×2.95 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorWhite
Format20 x 4

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current10 mA
Backlight Current60 mA

Part No. Description Price
MOP-AL204A-BBTW-25E-3IN Base Product $25
