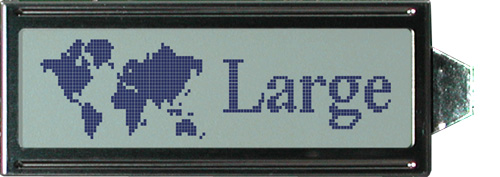

MOP-GL12232D-BGFW-26N-3IN Display Module

MOP-GL12232D-BGFW-26N-3IN


High quality graphic parallel displays feature industry compatible SED1520 8 bit controller.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeGray STN
PolarizerTransflective
Character SetN/A
ModelD
Viewing Angle12 O'Clock
ControllerSED1520
NegGenN/A

Appearance:


Module Size86.00 mm(L)×35.00 mm(W)×12.00 mm(T)
Pixels32(Rows)×122(Cols)
Active Area53.64 mm(L)×14.04 mm(W)
Background ColorWhite

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current10 mA
Backlight Current20 mA

Part No. Description Price
MOP-GL12232D-BGFW-26N-3IN Base Product $25
