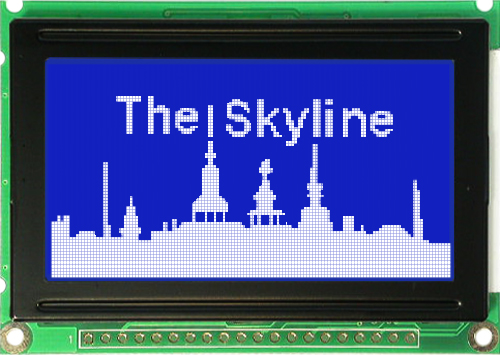

MOP-GL12864F-BBTW-16N-3IY Display Module

MOP-GL12864F-BBTW-16N-3IY


High quality graphic parallel displays feature industry compatible SED1520 8 bit controller.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeBlue STN
PolarizerTransmissive
Character SetN/A
ModelF
Viewing Angle6 O'Clock
ControllerSED1520
NegGenYes

Appearance:


Module Size75.00 mm(L)×52.70 mm(W)×8.00 mm(T)
Pixels64(Rows)×128(Cols)
Active Area55.00 mm(L)×27.50 mm(W)
Background ColorWhite

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current5 mA

Part No. Description Price
MOP-GL12864F-BBTW-16N-3IY Base Product $28
