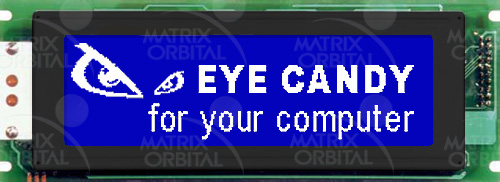

MOP-GL24064A-BBTW-22N-3IN Display Module

MOP-GL24064A-BBTW-22N-3IN


High quality graphic parallel displays feature industry compatible T6963 8 bit controller.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeBlue STN
PolarizerTransflective
Character SetN/A
ModelA
Viewing Angle12 O'Clock
ControllerT6963
NegGenN/A

Appearance:


Module Size180.00 mm(L)×65.00 mm(W)×16.00 mm (T)
Pixels64(Rows)×240(Cols)
Active Area127.16 mm(L)×33.88 mm(W)
Background ColorBlue
Text ColorWhite

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity0%
Supply CurrentN/A
Backlight CurrentN/A

Part No. Description Price
MOP-GL24064A-BBTW-22N-3IN Base Product $72
