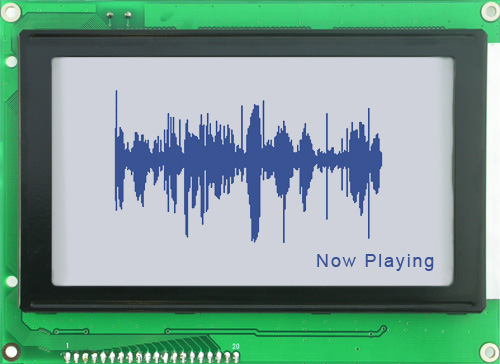

MOP-GL240128D-BGFW-12N-3IN

High quality graphic parallel displays feature industry compatible T6963 8 bit controller.

	Software
	Technical Manual
	Cables
	LCD Selection Guide
	Keypad Selection Guide
	Applications

Features:
IC Package	COB
LCD Type	Gray STN
Polarizer	Transflective
Character Set	N/A
Model	D
Viewing Angle	6 O'Clock
Controller	T6963
NegGen	N/A

Appearance:
Module Size	144.00 mm(L)×104.00 mm(W)×16.00 mm(T)
Pixels	128(Rows)×240(Cols)
Display Size	114.00 mm(L)×64.00 mm(W)
Background Color	White

Electrical:
Standard Temperature	-20°C to 70°C
Max Humidity	90℅
Supply Current	47mA
Backlight Current	240 mA

Part No.	Description	Price
MOP-GL240128D-BGFW-12N-3IN	Base Product	$89
