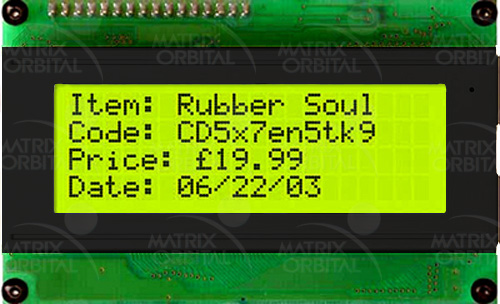

LCD2041
Available extended temperature and voltage options, the LCD2041 has outstanding speed and is capable of bar graphs or large digits. This affordable unit is currently being used in a bar code reader product.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Photos
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 3 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×27.50mm(T) |
| Character Size | 4.75 mm(L)×2.95 mm(W) |
| Active Area | 70.40 mm(L)×20.80 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
| Format | 20 x 4 |
Interface:
| RS232 | 1200 to |
| RS232 TTL | 1200 to |
| Buffer | 80 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 10 mA |
| Backlight Current | 57 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| LCD2041 | Base Product | $65 | |
| LCD2041-E | Extended Temperature option. | $75 | |
| LCD2041-V | Wide Voltage power, +9 to +15Vdc. | $68 | |
| LCD2041-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $78 | |
| LCD2041-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $85 | |
| LCD2041-VPT-E | Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. | $95 |
