LK204-7T-1U-GW Display Module

LK204-7T-1U-GW

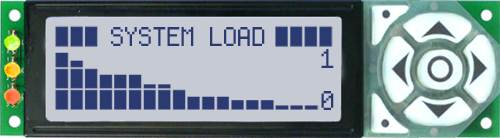

The LK204-7T-1U-GW is a 20 character by 4 line serial LCD (RS232/TTL/I2C) with a 7 key tactile keypad and 3 status indicating LEDs. This unit fits into a 1U opening.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size140.20 mm(L)×38.00 mm(W)×29.00 mm(T)
Character Size5.20 mm(L)×3.90 mm(W)
Active Area77.00 mm(L)×23.60 mm(W)
Background ColorGrey/ White
Text ColorGrey
Format20 x 4

Interface:


RS2329600 to 115200
RS232 TTL9600 to 115200
Buffer128 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current90 mA
Backlight Current125 mA
Inrush CurrentN/A

Part No. Description Price
LK204-7T-1U-GW Base Product $75
LK204-7T-1U-GW-E Extended Temperature option. $85
LK204-7T-1U-GW-LV Low Voltage Power +3.3V $78
LK204-7T-1U-GW-LV-E Low Voltage Power +3.3V. Extended Temperature Option. $88
