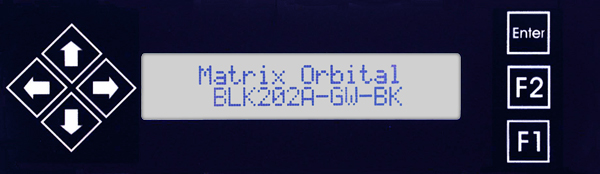

BLK202A-BK-USB-GW Display Module

BLK202A-BK-USB-GW


This part number includes all that you need for a PC Bay Insert. The display is our LK202-25-USB-GW. Which is a 20x2 USB Character LCD. It also comes with the B202A-BK mounting bracket and External Mini USB cable.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One Wire1
GPO6
Advanced GPON/A

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×25.73 mm(T)
Character Size3.20 mm(L)×5.55 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorGrey/White
Text ColorLight Blue
Format20 x 2

Interface:


Buffer128 Bytes
USB1200 2400 9600 19200 33600 56700 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current50 mA
Backlight Current185 mA
Inrush CurrentN/A

Part No. Description Price
BLK202A-BK-USB-GW Base Product $92
BLK202A-BK-USB-GW-E Extended Temperature option. $99
