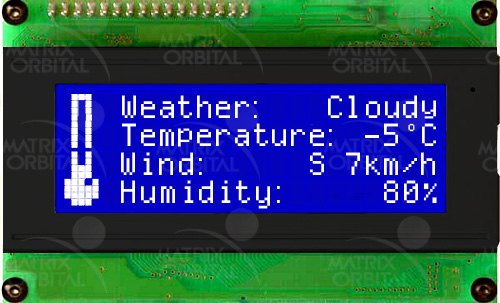

LCD2041-WB Display Module

LCD2041-WB


The LCD2041 has outstanding speed and is capable of bar graphs or large digits. This affordable unit can be used in many applications. The LCD2041 is currently being used to show vital information for transmissions.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3
Advanced GPON/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×27.50mm(T)
Character Size4.75 mm(L)×2.95 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorBlue
Text ColorWhite
Format20 x 4

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current10 mA
Backlight Current90 mA
Inrush CurrentN/A

Part No. Description Price
LCD2041-WB Base Product $65
LCD2041-WB-E Extended Temperature option. $75
LCD2041-WB-V Wide Voltage power, +9 to +15Vdc. $68
LCD2041-WB-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $78
LCD2041-WB-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $85
LCD2041-WB-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $95
