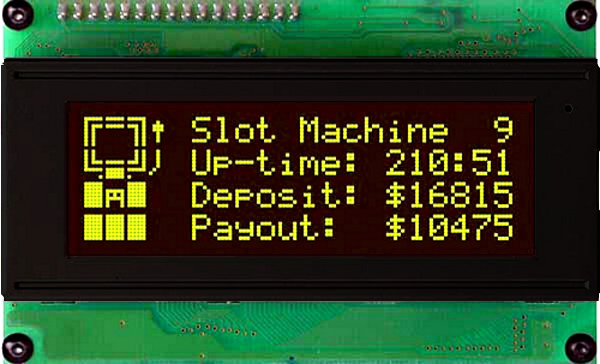

LK204-25-IY Display Module

LK204-25-IY


Interface with a 25 key matrix interface on this 20 by 4 display with many options such as wide voltage and colors. This display is so versatile it can be used in servers to monitor network information.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×27.50mm(T)
Character Size4.75 mm(L)×2.95 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorBlack
Text ColorYellow
Format20 x 4

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current10 mA
Backlight Current90 mA
Inrush CurrentN/A

Part No. Description Price
LK204-25-IY Base Product $70
LK204-25-IY-E Extended Temperature option. $80
LK204-25-IY-V Wide Voltage power, +9 to +15Vdc. $73
LK204-25-IY-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $82
LK204-25-IY-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $90
LK204-25-IY-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $100
