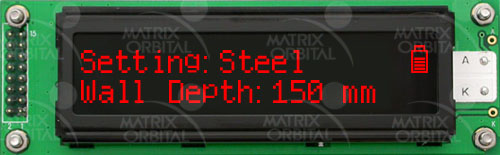

LK202-25-R Display Module

LK202-25-R


This 20 character by 2 line LCD, comes with an easy to use serial communication interface and has the capability to connect up to a 5 by 5 matrix style keypad.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
GPO6

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×25.73mm(T)
Character Size5.55 mm(L)×3.20 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorRed
Format20 x 2

Interface:


RS2321200 to 19200
RS232 TTL1200 to 19200
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current25 mA
Backlight Current115 mA
Inrush CurrentN/A

Part No. Description Price
LK202-25-R Base Product $60
LK202-25-R-E Extended Temperature option. $70
LK202-25-R-V Wide Voltage power, +9 to +15Vdc. $63
LK202-25-R-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $73
