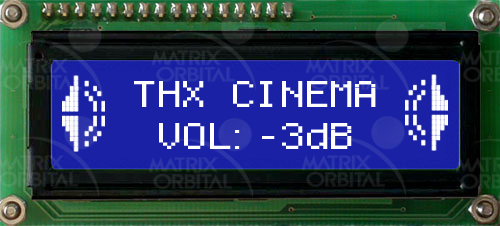

LK162-12-WB Display Module

LK162-12-WB


This unit is used in a variety of industrial applications such as computer server systems and web application control systems. Our 16 characters by 2 lines displays are available in 3 colors and many options to give your project a quick launch to market. Currently displaying CD Rom statistics.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad12
One WireN/A
GPO7
Advanced GPON/A

Appearance:


Module Size80.00 mm(L)×36.00 mm(W)×27.50mm(T)
Character Size5.55 mm(L)×2.95 mm(W)
Active Area56.20 mm(L)×11.50 mm(W)
Background ColorBlue
Text ColorWhite
Format16 x 2

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current37 mA
Backlight Current92 mA
Inrush CurrentN/A

Part No. Description Price
LK162-12-WB Base Product $50
LK162-12-WB-E Extended Temperature option. $60
LK162-12-WB-V Wide Voltage power, +9 to +15Vdc. $53
LK162-12-WB-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $63
