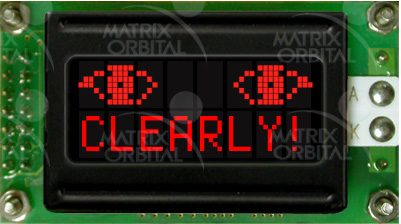

LCD0821-R Display Module

LCD0821-R


If your product is short on space but needs information at a glance then the LCD0821 will suit your needs. This product is used in military servers and luxury yachts. The 8 characters by 2 lines display maybe just right for your project.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO1
Advanced GPON/A

Appearance:


Module Size58.00 mm(L)×32.00 mm(W)×25.00 mm(T)
Character Size5.56 mm(L)×2.96 mm(W)
Active Area27.80 mm(L)×11.49 mm(W)
Background ColorBlack
Text ColorRed
Format8 x 2

Interface:


RS2321200 to 19200
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current9 mA
Backlight Current40 mA
Inrush CurrentN/A

Part No. Description Price
LCD0821-R Base Product $40
LCD0821-R-E Extended Temperature option. $50
LCD0821-R-V Wide Voltage power, +9 to +15Vdc. $43
LCD0821-R-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $53
