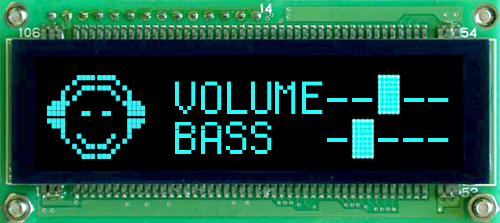

VK162-12
With extended temperature rating and no ghosting effect from low temperatures, this unit can be used anywhere in the world. The near 180 degree viewing angle allows this display to be placed at any angle and still be visible and clear.
Technical Manual
Cables
VFD Filters
Keypad Selection Guide
Features:
| Keypad | 12 |
| One Wire | N/A |
| GPO | 7 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 80.00 mm(L)×36.00 mm(W)×27.67 mm(T) |
| Character Size | 2.46 mm (L)×4.76 mm(W) |
| Active Area | 51.36 mm(L)×11.40 mm(W) |
| Text Color | Blue/Green |
| Format | 16 x 2 |
Interface:
| RS232 | 1200 to |
| RS232 TTL | 1200 to |
| Buffer | 80 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | -20°C to 70°C |
| Extended Temp.(-E) | -40°C to 85°C |
| Max Humidity | 90% |
| Supply Current | 251 mA |
| Backlight Current | N/A |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| VK162-12 | Base Product | $136 | |
| VK162-12-E | Extended Temperature option. | $146 | |
| VK162-12-V | Wide Voltage power, +9 to +15Vdc. | $139 | |
| VK162-12-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $149 |
