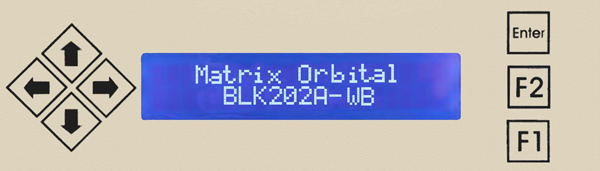

BLK202A-WB Display Module

BLK202A-WB


This kit includes the display and all necessary accessories that will allow implantation more easily than ever before. The kit includes the powerful LK202-25-V module with a 5.25' bay insert with a 7 key overlay allowing an easy interface with any headless system.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size3.20 mm(L)×5.55 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlue
Text ColorWhite
Format20 x 2

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current25 mA
Backlight Current100 mA
Inrush CurrentN/A

Part No. Description Price
BLK202A-WB Base Product $82
BLK202A-WB-4BR Add the -4BR communication option. 1ft Serial, PCI bracket and an internal cable. $83
