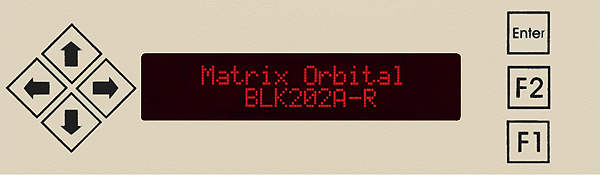

BLK202A-R

This part number includes all that you need for a PC Bay Insert. The display is our LK202-25-R-V, extended voltage 9-15 Vdc. Which is a 20x2 Character Serial (RS232/TTL/I2C) LCD. It also comes with the B202A mounting bracket, 12V power cable and 4ft serial cable.

	Software
	Technical Manual
	Cables
	LCD Selection Guide
	Keypad Selection Guide

Features:
Keypad	7
One Wire	N/A
GPO	6
Advanced GPO	N/A

Appearance:
Module Size	116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size	3.20 mm(L)×5.55 mm(W)
Display Size	18.20 mm(L)×82.20 mm(W)
Background Color	Black
Text Color	Red
Format	20 x 2

Interface:
RS232	1200 to 9600
RS232 TTL	1200 to 9600
Buffer	80 Bytes

Electrical:
Standard Temperature	0°C to 50°C
Extended Temp.(-E)	-20°C to 70°C
Max Humidity	90℅
Supply Current	25 mA
Backlight Current	100 mA
Inrush Current	N/A

Part No.	Description	Price
BLK202A-R	Base Product	$79
BLK202A-R-4BR	Add the -4BR communication option. 1ft Serial, PCI bracket and an internal cable.	$83
