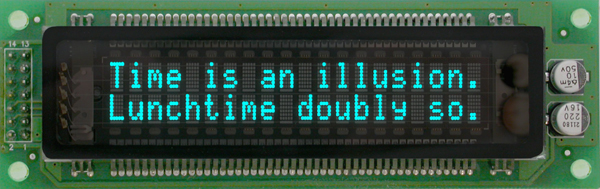

MOS-AV202C-NT3SE Display Module

MOS-AV202C-NT3SE


This 20 character by 2 line VFD display comes with an easy to use RS232 communication interface and 3 General Purpose Outputs.

Software
Technical Manual
Cables
VFD Filters
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size2.40 mm(L)×4.70 mm(W)
Active Area70.80 mm(L)×11.50 mm(W)
Background ColorN/A
Text ColorBlue/Green
Format20 x 2

Interface:


RS232 TTL9600 to bps
Buffer128 Bytes

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current252 mA
Backlight CurrentN/A
Inrush Current396 mA

Part No. Description Price
MOS-AV202C-NT3SE Base Product $70
