MOS-AL162A-YX3SE Display Module

MOS-AL162A-YX3SE

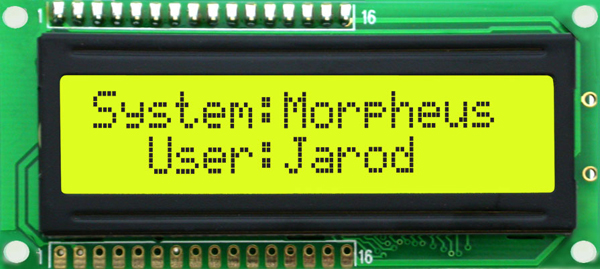

This 16 character by 2 line LCD display comes with an easy to use RS232 communication interface and 3 General Purpose Outputs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size80.00 mm(L)×36.00 mm(W)×25.60 mm(T)
Character Size5.55 mm(L)×2.95 mm(W)
Active Area56.20 mm(L)×11.50 mm(W)
Background ColorYellow/Green
Text ColorBlack
Format16 x 2

Interface:


RS232 TTL9600 to bps
Buffer128 Bytes

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current33 mA
Backlight Current150 mA

Part No. Description Price
MOS-AL162A-YX3SE Base Product $35
