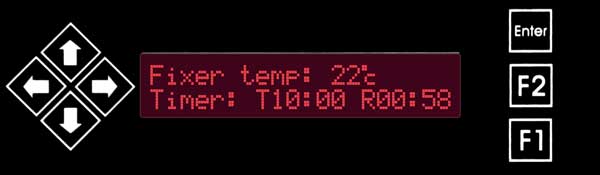

MX213 Display Module

MX213


For the music admirer, use Winamp 2 or 3 to monitor your personal music selection and adjust the volume with the keypad. You don't need to be a PC enthusiast anymore to enjoy the benefits of this unit. The MX2 also allows you to plug 3 fans and 4 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One Wire4
GPO3
Advanced GPO3

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size5.55 mm (L)×3.20 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorRed
Format20 x 2

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 50°C
Supply Current25 mA
Backlight Current115 mA
Inrush CurrentN/A

Part No. Description Price
MX213 Base Product $99
