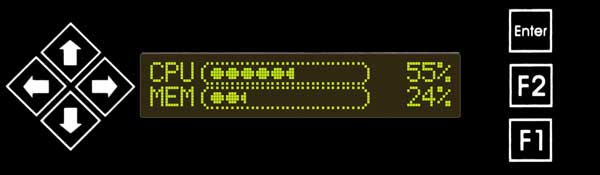

MX214 Display Module

MX214


Feeling out of touch with the world? Worried about your portfolio? Want to know the latest weather updates? With the MX2 series you can receive the latest information and have it scroll across your screen. The MX2 also allows you to plug 3 fans and 4 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One Wire4
GPO3
Advanced GPO3

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size5.55 mm (L)×3.20 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorYellow
Format20 x 2

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 50°C
Supply Current25 mA
Backlight Current115 mA
Inrush CurrentN/A

Part No. Description Price
MX214 Base Product $99
