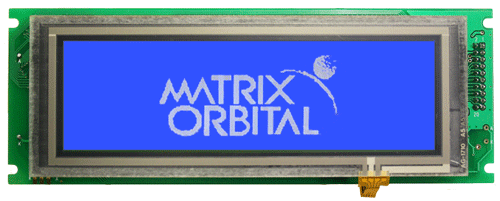

GLT24064-WB Display Module

GLT24064-WB


Full touch screen, no keypad needed! Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This touch screen graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a touch screen.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One Wire1

Appearance:


Module Size180.00 mm(L)×65.00 mm(W)×30.50 mm(T)
Pixels240(Rows)×64(Cols)
Active Area132.20 mm(L)×39.20 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


RS2321200 to 115200
Buffer128 Bytes

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current45 mA
Backlight Current220 mA
Inrush CurrentN/A

Part No. Description Price
GLT24064-WB Base Product $190
GLT24064-WB-V Wide Voltage power, +9 to +15Vdc. $192
GLT24064-WB-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $210
