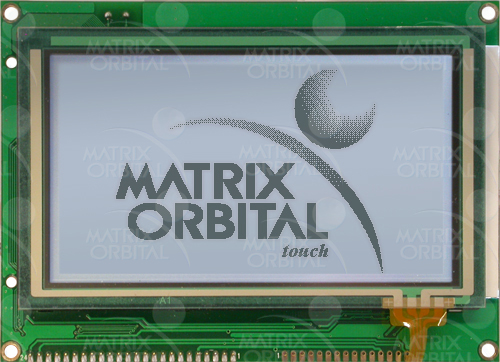

MOP-GLT240128D-BGFW-12N-3IN Display Module

MOP-GLT240128D-BGFW-12N-3IN


High quality graphic parallel displays feature industry compatible T6963 8 bit controller with touchscreen.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeGray STN
PolarizerTransflective
Character SetN/A
ModelD
Viewing Angle6 O'Clock
ControllerT6963
NegGenN/A

Appearance:


Module Size144.00 mm(L)×104.00 mm(W)×16.00 mm(T)
Pixels128(Rows)×240(Cols)
Active Area107.95 mm(L)×57.55 mm(W)
Background ColorWhite

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current47mA
Backlight Current240 mA

Part No. Description Price
MOP-GLT240128D-BGFW-12N-3IN Base Product $114
