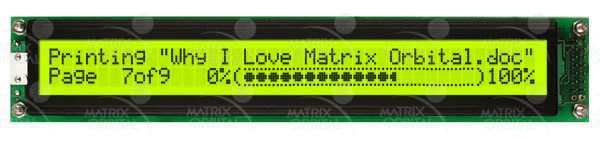

LK402-25-USB Display Module

LK402-25-USB


LK402-25 comes with an easy to use USB communication interface.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
GPO6

Appearance:


Module Size182.00 mm(L)×33.50 mm(W)×21.00 mm(T)
Character Size3.20 mm(L)×5.55 mm(W)
Active Area154.00 mm(L)×17.00 mm(W)
Background ColorBlack
Text ColorYellow/Green
Format40 x 2

Interface:


Buffer128 Bytes
USB1200 2400 9600 19200 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current10
Inrush CurrentN/A

Part No. Description Price
LK402-25-USB Base Product $85
LK402-25-USB-E Extended Temperature option. $95
