GLK12232-25-USB-FGW Display Module

GLK12232-25-USB-FGW

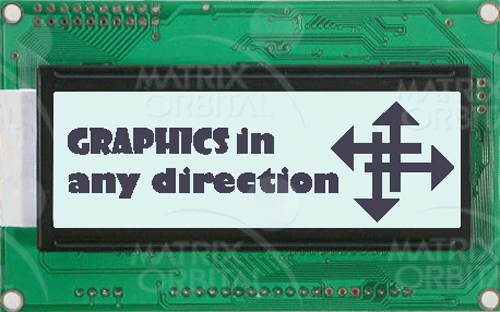

GLK12232-25-USB-FGW is a 122x32 pixel graphic display. This display is available in FSTN Grey/White color with a USB interface. It is designed to perfectly fit into the same space as a 20x4 character display, and can easily be adapted to fit into your existing project and give your interface an overhaul, or add a high end look to a new product. And as always Matrix orbital's graphic design services we can help you create the graphics you need to build your interface.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPO2
Advanced GPON/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×13.50 mm(T)
Pixels32(Rows)×122(Cols)
Active Area69.50 mm(L)×20.50 mm(W)
Background ColorGrey/ White
Text ColorBlack

Interface:


Buffer92 Bytes
USB9600 19200 33600 56700 115200
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current18 mA
Backlight Current110 mA
Inrush CurrentN/A

Part No. Description Price
GLK12232-25-USB-FGW Base Product $88
GLK12232-25-USB-FGW-E Extended Temperature option. $98
