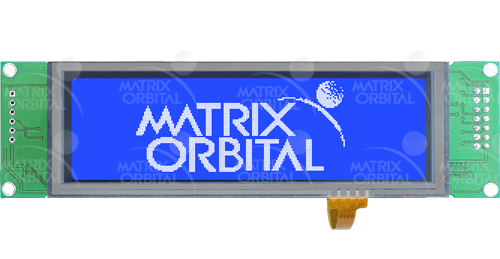

GLT24064R-1U-USB-WB Display Module

GLT24064R-1U-USB-WB


Full touch screen, no keypad needed! Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This touch screen graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a touch screen.

With these USB LCD displays you can fit a touch screen even into an application with limited space, these high resolution displays will fit into a 1U slot.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireUSB or Custom
GPO6

Appearance:


Module Size112.00 mm(L)×38.00 mm(W)×28.90 mm(T)
Pixels64(Rows)×240(Cols)
Active Area98.00 mm(L)×28.40 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


Buffer128 Bytes
USB1200 2400 9600 19200 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current45
Backlight Current75 mA
Inrush CurrentN/A

Part No. Description Price
GLT24064R-1U-USB-WB Base Product $170
GLT24064R-1U-USB-WB-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $190
