GLT240128-422 Display Module

GLT240128-422

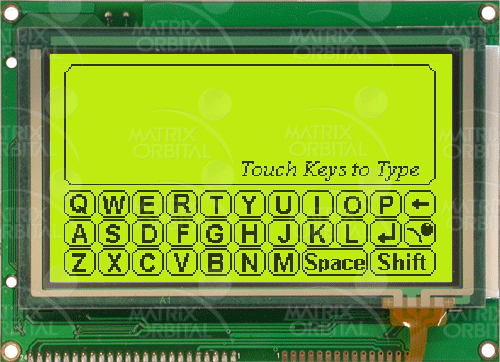

Full touch screen, no keypad needed! The GLT240128-422 is a large Yellow/Green graphic display that gives you the room to display many pictures and text all at the same time. Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great product/project you are developing. Our graphic displays offer you high speeds and an easy to use command interface. Now available in RS422!

The RS422 LCD Controller combines a 240 x 128 graphic LCD display a resistive touch screen, so you can get started creating powerful, simple user interfaces.

We HIGHLY Recommends that you use a VPT module for any RS422 units.Due to the industrial nature of RS422, VPT modules add a layer of protection, increased efficiency and create a more reliable system.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadTouch

Appearance:


Pixels128(Rows)×240(Cols)
Background ColorYellow/Green
Text ColorBlack

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%

Part No. Description Price
GLT240128-422 Base Product $224
GLT240128-422-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $244
