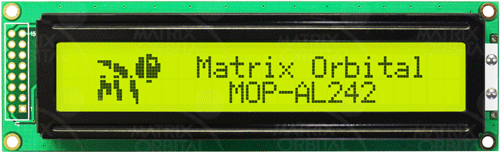

MOP-AL242A-BYFY-25E-3IN Display Module

MOP-AL242A-BYFY-25E-3IN


Our high quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller. Available in 24x2, a unique size for greater versatility. Combine it with our X-board S-series to get your project off the ground faster.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeYellow STN
PolarizerTransflective
Character SetEnglish / European
ModelA
Viewing Angle12 O'Clock
ControllerS6A0069

Appearance:


Module Size118.00 mm(L)×36.00 mm(W)×14.00 mm(T)
Character Size3.20 mm(L)×5.55 mm(W)
Active Area93.50 mm(L)×16.00 mm(W)
Background ColorYellow/Green
Text ColorBlack
Format24 x 2

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current10 mA
Backlight Current150 mA
Inrush CurrentN/A

Part No. Description Price
MOP-AL242A-BYFY-25E-3IN Base Product $19
