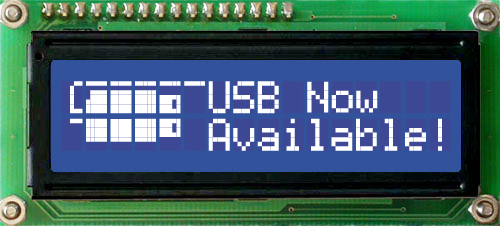

LK162-12-USB-WB Display Module

LK162-12-USB-WB


Easy-to-use character 16X2 LCD with following features which highlight the Matrix Orbital Advantage:

-industry standard USB Protocol. USB 1.0 and 2.0 supported
-easy-to-use virtual comm port in Windows
-connect to a wide variety of host controllers
-lightning faster communication speeds
-control of brightness, baud rate, and screen contrast
-create up to 8 custom characters
-user interaction through a 3x4 matrix style keypad or 7 general purpose outputs

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad12
GPO7

Appearance:


Module Size80.00mm(L)×36.00mm(W)×28.82mm(T)
Character Size2.95mm(L)×5.55mm(W)
Active Area64.50mm(L)×17.50mm(W)
Background ColorBlue
Text ColorWhite
Format16 x 2

Interface:


RS23219200 to 1200
RS232 TTL19200 to 1200
Buffer128 bytes Bytes
USB115200 33600 19200 9600 2400 1200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current40 mA
Backlight Current30 mA

Part No. Description Price
LK162-12-USB-WB Base Product $55
LK162-12-USB-WB-E Extended Temperature option. $65
