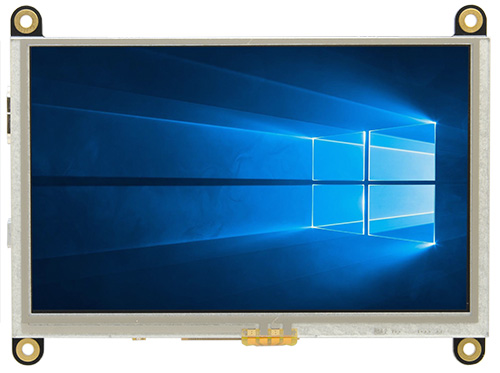

HTT50A-TPR-BLM-B0-H5-CH-V5 Display Module

HTT50A-TPR-BLM-B0


The HTT series offers full colour TFT displays with a simple HDMI and USB plug and play interface. Designed with industrial applications in mind, the HTT is perfect for panel mounted applications and HMI interfaces.

  • 5.0' (800x480) - Resistive Touch
  • Plug and Play
  • DVI/HDMI interface
  • Compatible with Raspberry Pi, Windows, Linux and other systems
  • USB or touch screen, HMI mouse interface
  • Upgradeable touch driver firmware
  • Automatic resolution detection
  • Low profile mounting holes
  • Industrial 5-35V power option (-VPT)
  • Power through USB

Software
HTT Series Quick Start Guide
Hardware Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPON/A
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA

Appearance:


Module Size121.20mm(L)×92.25mm(W)×13.22mm(T)
Pixels800(Rows)×480(Cols)
Active Area110.70mm(L)×67.40mm(W)
Background ColorBlack
Text ColorFull Color

Interface:


OtherHDMI

Electrical:


Standard Temperature0°C to 70°C
Supply Current275 mA

Part No. Description Price
HTT50A-TPR-BLM-B0-H5-CH-V5 5.0' 800x480 HDMI TFT, Horizontal Headers, 5V - Resistive Touch $95
HTT50A-TPR-BLM-B0-H6-CH-V5 5.0' 800x480 HDMI TFT, Vertical Headers, 5V - Resistive Touch $95
HTT50A-TPR-BLM-B0-H5-CH-VPT 5.0' 800x480 HDMI TFT, Horizontal Headers, 5-35V - Resistive Touch $105
HTT50A-TPR-BLM-B0-H6-CH-VPT 5.0' 800x480 HDMI TFT, Vertical Headers, 5-35V - Resistive Touch $105
