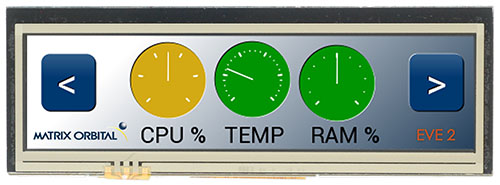

EVE2-38A-BLH-TPR Display Module

EVE2-38A-BLH

Matrix Orbital EVE2 TFT's utilize FTDI's second generation Embedded Video Engine to control, render, manage and display complex graphics. With built in graphics operations, sound synthesizer, digital filter and support for multiple widgets you can create your own stunning screens and interfaces with the EVE Screen Designer software.

  • 3.8' 1U (480x116) - Resistive Touch
  • 1U Form Factor
  • FT812 CPU
  • 1 MB graphics RAM
  • Backlight PWM LED Driver
  • Standard 20 Pin Connector
  • Mono 8-bit linear audio wave playback
  • SPI and QSPI communication protocol
  • Advanced Embedded Video Engine (EVE) with high resolution graphics and video playback
  • EVE Screen Designer (ESD) 3.x GUI drag and drop design suite
  • Supports multiple widgets
  • Supports landscape or portrait orientations
  • Supports playback of motion-JPEG encoded AVI videos
  • Extended Operating temperature range: -20°C to 70°C

Software
Hardware Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

KeypadN/A
One WireN/A
GPO4
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA

Appearance:

Module Size105.5mm(L)×37.8mm(W)×7.4mm(T)
Pixels480(Rows)×116(Cols)
Active Area96.84mm(L)×25.1mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

Buffer1MB Bytes
OtherSPI/QSPI/Speaker

Electrical:

Standard Temperature-20°C to 70°C
Supply Current40mA
Backlight Current175mA

Part No. Description Price
EVE2-38A-BLH-TPR 3.8' 1U 480x116 EVE2 FT812 TFT - Resistive Touch, SPI module $85
