Integrated Low-Voltage Support. |
|
Target Voltage Sense & Measurement. |
|
Powered by target ( Supply current=100mA ) External Power Option. |
|
Jumper-less Address Configuration. |
|
Up to 8Mbit Emulation in a single unit. Emulates up to 45ns devices.Target cable(s) included. |
|
Fast Downloads (up to 2.5 Mbit per second). |
|
Replaces standard EPROM device during development. |
|
Connects to any LPT Parallel Port. LPT cable included. |
|
Auto/Manual Target Reset on download. Mini-clip cable included for Reset connection. |
|
Read-back, Verify and Self-test functions. |
|
All sizes and speeds can be Daisy-chained together.Daisy-chain cable included. |
|
Batchable loader & utilities included. |
|
Accepts Intel HEX, Tektronix HEX, Motorolla 'S' records and binary files. |
|
TTL and 5v CMOS compatible. |
|
14 day money-back guarantee. 90 day warranty. Unlimited technical support. |
|
3.26" W x 5.63"L x .9"H |
|

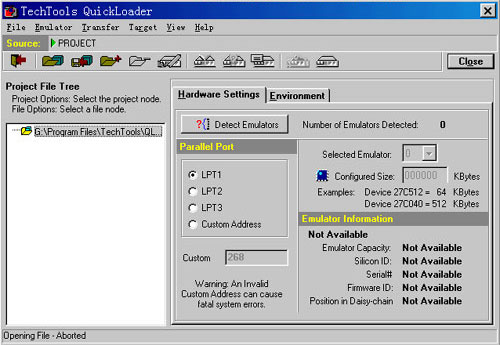

Includes QuickLoader Software and Full Screen Editor . Free software updates via WEB downloads. |
