Hi-end, affordable emulator for 8051 microcontrollers with project IDE Modular style hardware offers complete emulation for most of the 8051 MCUs.  Modular design provides easy expandability and upgrades while reducing initial investment costs. Package includes an Integrated Development Environment for 8051 MCUs.

Features:

Non-intrusive emulation of microcontrollers from Atmel, Philips, Intel, Winbond, and other manufacturers*
Up to 80 MHz** real-time support of 8051 derivatives with several clock modes at 1.2V to 5V
Up to 1M Bytes of program memory and 512K Bytes of Xdata memory**
Finest memory mapping with one byte resolution
Memory banking feature - 16 banks by 64K
Up to 1M true hardware breakpoints at Program memory
Up to 1M true hardware breakpoints at Xdata memory address access for Read, Write or Read/Write operations
Breakpoints on access to on-chip data memories: direct data memory (incl. SFRs), on-chip Xdata memory, and EEPROM
Four complex breakpoints and triggers
16K to 64K frames x 128 bit real-time tracer
Tracing in synchronies, forward, reverse and dynamic modes
Shadowing of on-chip Xdata, EEPROM and Flash memories
"On-the-fly" access to the code memory, shadow memory, breakpoints, tracer and timer
True hardware real-time Performance Analyzer
. Programmable Code/Data Coverage Monitoring for Code, Xdata, on-chip Xdata or EEPROM memories coverage
48-bit timer provides timing and measurement with 0.1% accuracy
Enables working with either internal or external clocks
Internal clock programming in a range from 1 KHz to Max. with 0.5% accuracy
On-board voltage regulator precisely auto-adjusts to the target's voltage or can be programmed in the range from 1.2V to 5.5V with +/-20 mV accuracy
8 probe inputs and 4 trigger outputs
High-speed host link via USB or Serial PC ports
Very small - a palm size header enclosed in a plastic case that plugs directly to a target socket without extra ribbon cables and pods
Project-level support and source-level debugging for all popular C compilers: editing, compiling, debugging in one development IDE
Source-level debugging for all popular C compilers
Embedded C-like script language for automated testing
ChipProg+ programmer can be integrated in the Project-52 IDE
Lifetime free software update via Phyton's web site*

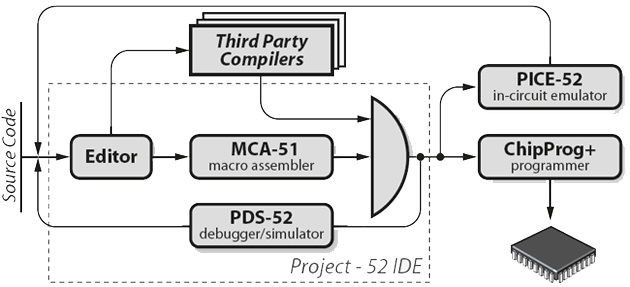

Project52 offers a complete hardware / software tool solution for virtually all 8051 microcontrollers

A full package includes:

- MCA-51 macro assembler
- PDS-52 software debugger/simulator
- PICE-52 in-circuit emulator
- ChipProg+ universal programmer

All tools are fully integrated and controllable through the project IDE. Optionally bundled with best third parties' compilers this comprehensive tool set provides all development software and hardware, including source code editing, project management, debugging, and support for "burning" compiled code into a target microcontroller or memory devices. Phyton provides a true one-stop-tool-shop for 8051 users! By selecting a Project-52 configuration, you can choose a custom development tool set, creating an environment that fits your needs and budget.
