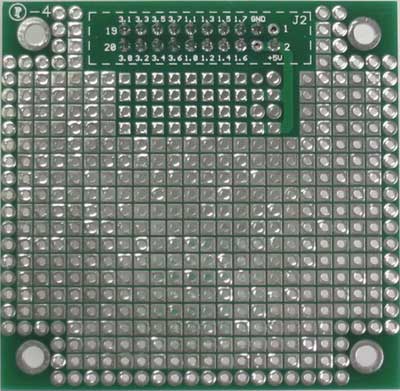

PROTO-1

Prototyping board with a 20-pin universal expansion connector. Using PROTO-1, analog inputs/outputs, temperature sensors, relays, displays and many other circuits can be added to the base microcontroller board for rapid project development

Documents Peripherals

Features

Ideal for custom circuit development
Easy interface to MINI-MAX series boards
Several prototyping boards can be stacked
Expansion pins brought to prototyping area
