PBC6P6C

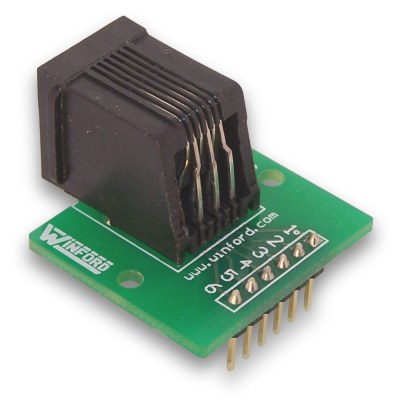

RJ11/RJ12 6P6C Breadboard Adapter

PBC6P6C - 6P6C Breadboard Adapter
Part No. Description Price Stock
PBC6P6C 6P6C Breadboard Adapter $7
∗ Standard lead time is 1 week

General Description

These handy adapters allow you to quickly and easily mount an RJ11/RJ12 6P6C modular jack connector onto a breadboard circuit. Each pin is brought out to a 6-pin single-row header on the bottom of the board that can easily be inserted into a breadboard. This design allows the adapter to be placed on the edge of a breadboard, keeping cables and connections out of the middle of the breadboard where you are working. The pins are arranged in numerical order and each is clearly labeled with its pin number.

Features


  • Quickly bring connections into breadboards
  • Perfect for prototyping serial port circuits
  • Each pin labeled according to jack numbering
  • Overall dimensions: approx 1.22' x 1.1'
