DB9 Dual Connector Breakout Board


DB9 Dual Connector Breakout Board

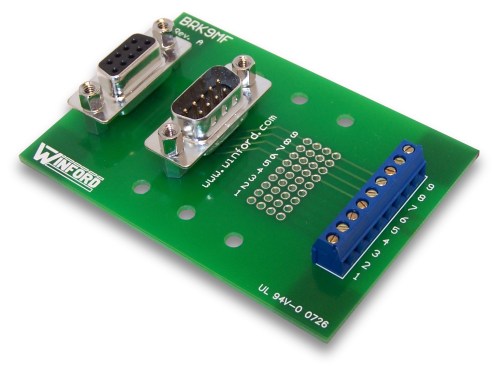

DB9 Dual Connector Breakout Board - DB9 Dual Breakout Board, Male-Female, Straight Connectors, Feet
Part No. Description Price Stock
BRK9MF-S-FT DB9 Dual Breakout Board, Male-Female, Straight Connectors, Feet $17 2
BRK9MF-S-DIN DB9 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $18 4

General Description

These breakout boards feature two DB9 connectors (one male, one female) wired 1:1 and all pins brought out to screw terminals for easy connection. Having two connectors allows the board to be easily inserted 'in-line' with an existing connection, allowing signals to pass through while being monitored, or to work with 'daisy-chained' equipment. Each pin is also brought to solder pads (4 per pin) at 0.1' spacing, allowing easy addition of standard pin headers.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for work with RS-232 serial ports, I/O cards, and any other device that uses a DB-9 connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

Features


  • Both DB9 Male and Female connectors
  • Easily insert inline
  • Screw terminal for each data line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Solder connection holes, four (4) per data line
  • Supports addition of .1' pin headers
  • PCB dimensions: 3.28' x 2.3'
  • Rubber feet or DIN rail mount

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

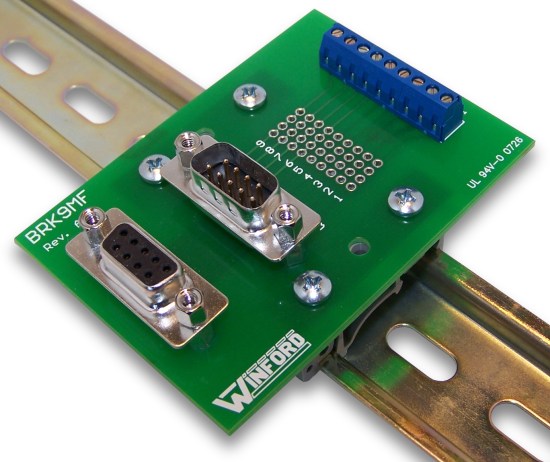

BRK9MF-S-DIN
(BRK9MF-S-DIN pictured - rail not included)
