USB A Female Breakout Board


USB Type A Female Breakout Board

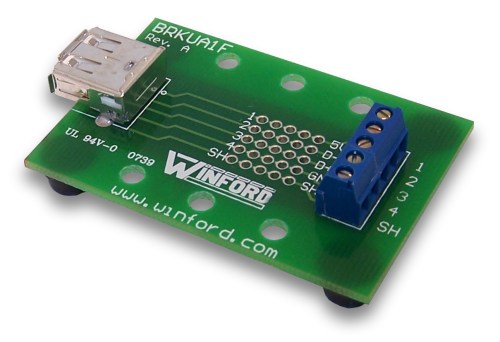

USB A Female Breakout Board - USB A Female Breakout Board, R/A Connector, Feet
Part No. Description Price Stock
BRKUA1F-R-DIN USB A Female Breakout Board, R/A Connector, DIN Rail Mount $13 2
BRKUA1F-R-FT USB A Female Breakout Board, R/A Connector, Feet $12 2

General Description

This breakout board brings all 4 pins plus shield of its USB Type A Female socket out to screw terminal blocks for easy connection and prototyping work. Each pin is also brought to solder pads (5 per line) at 0.1' spacing, allowing easy addition of standard pin headers.

These adapters are particularly useful for prototyping USB Host microcontroller circuits. Our experience so far shows that these adapters can be used with USB 2.0 High Speed signals without introducing any problems. However, please be aware that these adapters are not USB 2.0 High Speed certified.

This break out board is perfect for experimentation and prototype work, as well as for use in the educational laboratory. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

Note that these boards are NOT active USB devices that give you digital I/O pins. These are passive devices that simply provide an easy way to connect to the four USB signal wires.

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

BRKUA1F-R-DIN

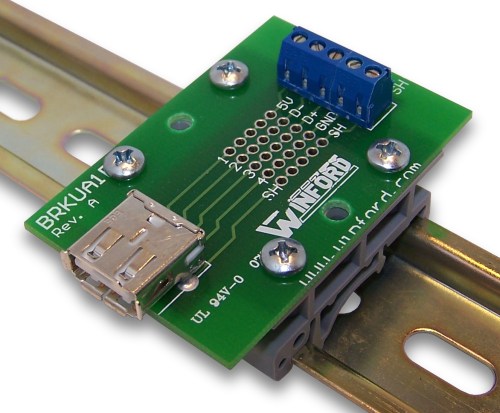

(BRKUA1F-R-DIN pictured - rail not included)

Features


  • USB Type A Female Socket
  • Screw terminal for each of the 4 lines, accomodates 16AWG to 26AWG
  • Screw terminal for outer socket shield
  • Solder pad connection space
  • Supports addition of .1' pin headers
  • Approximate dimensions: 2.38' x 1.6'
  • Rubber feet or DIN rail mount
