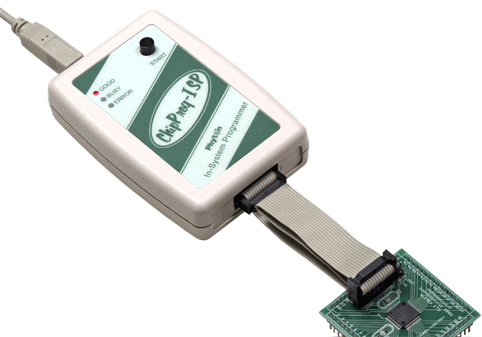

ChipProg-ISP

In-system programmer. Hosted via a USB PC port

$395
ChipProg-ISP - In-system programmer. USB controlled.

Features

  • Supports in-system programming for a variety of embedded microcontrollers, serial EEPROM & flash memory devices
  • Communicate to a PC via a USB 2.0 compatible port
  • Any number of concurrently working ChipProg-ISP chip burners can be driven from one computer or via a USB active hub
  • Does not require an additional power adapter for the programming - the power is taken from the computer USB port
  • Has a standard 14-pin connector for plugging changeable ISP cables connecting to the target
  • The output connector is protected against incorrect connection to the target
  • Being based on four independently working 32-bit microcontrollers and FPGAs, provides very fast loading & programming
  • Works under control of Windows 9x/2000/NT/XP/Vista. Easy-to-use and intuitive user interface
  • Allows to work in a multi-programmer mode - unlimited number of ChipProg-ISP units can be driven from one computer
  • 'Start' button for fast manual operations programmable to execute a single operation or a batch of them
  • Vpp and other parameters precise adjustment via the software settings
  • Project management - you can create, open and store an unlimited number of projects in the programmer software shell
  • Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, POF, JEDEC, PRG, ASCII Hex & Octal, etc.
  • Built-in editor supports sophisticated operations with blocks
  • Lifetime free software updates via Web
  • Palm size tool - 4" x 2½" x 1" (100x70x25 mm)
  • Splits files to multiple images
  • Embedded script language for automation of routine operations
  • Serialization of the programmed devices by writing a serial number into a specified target memory location
  • Calculation of the control sum with capability to write it into a specified target memory location
  • A unique signature can be written into a specified target memory location
  • Advanced self-diagnostic start-up routine that check the target device reliable contact through the ISP programming cable
  • Incorrect device connection check and overcurrent protection
