BRK2X13


2x13 (26-pos) 0.1" Header Breakout Board

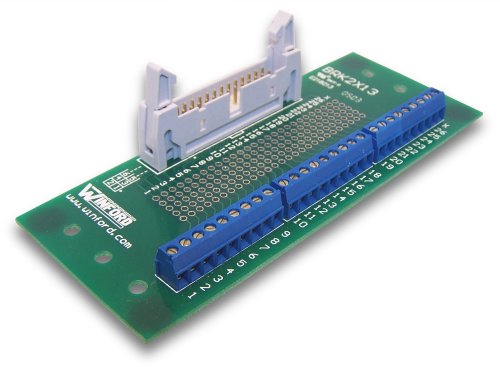

BRK2X13 - 2x13 0.1' Dual Row Header Breakout Board, Long Ejector, Feet
Part No. Description Price Stock
BRK2X13-L-FT 2x13 0.1' Dual Row Header Breakout Board, Long Ejector, Feet $20
BRK2X13-L-DIN 2x13 0.1' Dual Row Header Breakout Board, Long Ejector, DIN Rail Mount $22
∗ Standard lead time is 1 week

General Description

This breakout board brings all 26 pins of its male dual row header out to screw terminal blocks for easy connection and prototyping work. Each pin is also brought to solder pads (5 per pin) at 0.1' spacing, allowing easy addition of standard single row pin headers.

This break out board is perfect for experimentation and prototype work, as well as for use in the educational laboratory. It is well-suited for interfacing with data acquisition equipment or any other devices that use a 2x13 26-position header connector. A dual row header is sometimes referred to as an 'IDC Header', 'IDC connector', or 'ribbon cable connector'. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount Version

The BRK2X13 is also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

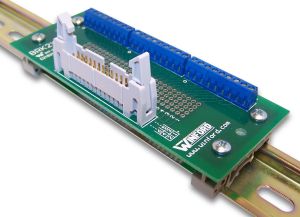

BRK2X13-L-DIN
(rail not included)

Features


  • 2 x 13 0.1" spaced male pin header
  • Screw terminal for each data line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Solder connection holes, five (5) per pin
  • Supports addition of .1" pin headers
  • Extra screw terminal (labeled X) brought to solder pads
  • Ejector latches on header provide secure connection and quick disconnection
  • Approximate dimensions: 2.0" x 4.9"
  • Rubber feet or DIN rail mount
