DB15HD Slim Breakout Board


DB15HD Slim Breakout Board

DB15HD Slim Breakout Board - DB15HD Slim Male Breakout Board, R/A Connector, Captive Screws
Part No. Description Price Stock
BRKSD15HDM-R DB15HD Slim Male Breakout Board, R/A Connector, Jack Screws $15 15
BRKSD15HDF-R DB15HD Slim Female Breakout Board, R/A Connector, Jack Screws $15
BRKSD15HDM-C DB15HD Slim Male Breakout Board, R/A Connector, Captive Screws $17 2
BRKSD15HDF-C DB15HD Slim Female Breakout Board, R/A Connector, Captive Screws $17 1
∗ Standard lead time is 1 week

General Description

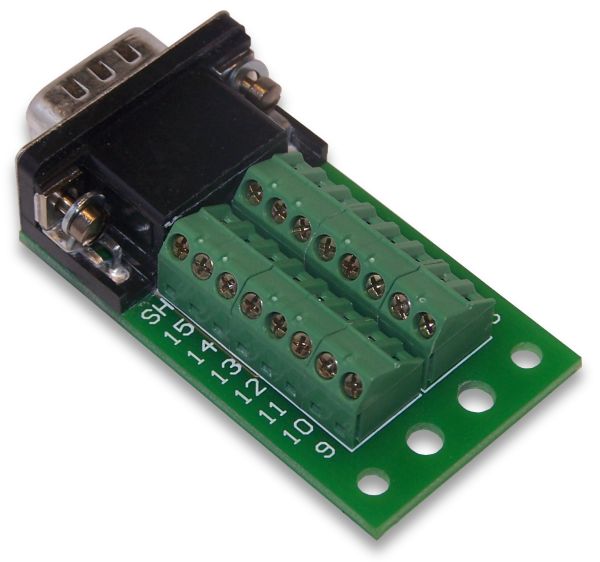

These breakout boards bring all 15 pins plus shield of a DB15HD (high density, 3 row) connector out to screw terminal blocks for easy connection and prototyping work. These breakout boards are perfect for field wiring tasks and are available in two different connector hardware options: captive screws or jack screws. The jack screws work well when mounting the breakout board to a wall box plate or thin panel that has a DB9/DB15HD cutout; the captive screws allow a firm connection between the breakout board and a mating connector that has jack screws.

The small footprint means that the end profile of the breakout board is no larger than the connector itself. This can be important when accessing multiple connectors which are spaced closely together. The breakout board also includes provision for strain reliefs; holes drilled in the board provide anchor points where tie-wraps can be attached.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for interfacing with data acquisition equipment or any other devices that use a DB-15HD connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

Technically, the correct term for a DB15 High Density connector is DE15, but that term is not commonly used.

Connector Hardware Options

These breakout boards are available with either captive screws or jack screws for the connector hardware. The captive screws are male #4-40 screws coming out of the face of the connector to accommodate direct mounting to a mating connector which contains jack screws. Alternately, the jack screw option is perfect for mounting to a wall box plate or thin panel that has a DB9 cutout, or to mate with a cable that has male #4-40 thumbscrews. Both options are pictured below:

BRKSD15HDM-C BRKSD15HDM-R

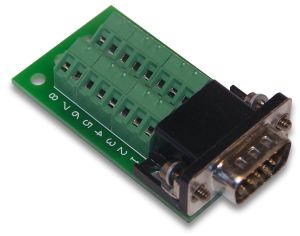

Captive Screws
BRKSD15HDM-C pictured

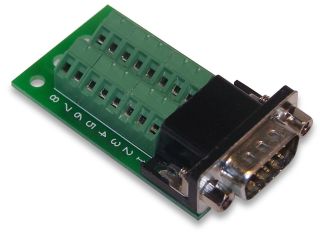

Jack Screws
BRKSD15HDM-R pictured

Features


  • Available with DB15HD Male
  • Screw terminal for each of the 15 lines plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Small footprint
  • PCB dimensions: 2.1' x 1.22'
