TH-1-SHT

TH-1-SHT board is a digital temperature/humidity sensor peripheral board for MINI-MAX and other micro-controller systems.

Documents

Peripherals

Photos

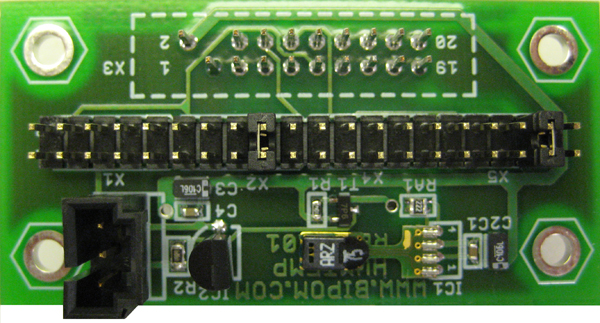

Humidity and Temperature sensor peripheral board

Features:

SHT75 humidity sensor provides ±1.8% RH accuracy from 0 to 100% RH
20-pin Expansion connector for data communication with a micro-controller board and power supply
Four jumper blocks to select the communication lines with a micro-controller board
Single operating voltage: 5 VDC, 3 mA maximum supply consumption
Dimensions are 2.4 x 1.2 inches (5.88 X 2.94 centimeters)
Mounting holes of 0.125 inches (3.175 millimeters) on four corners
0º - 70º C operating, -40º - +85º C storage temperature range
