T-1-1820

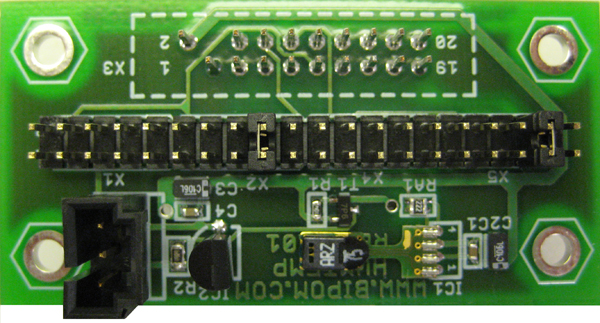

T-1-1820 board is a digital temperature sensor peripheral board for MINI-MAX and other micro-controller systems.

Documents

Peripherals

Digital Thermometer sensor peripheral board

Features:

DS18B20+PAR Digital Thermometer provides ±0.5ºC accuracy from -10ºC to 85ºC
20-pin Expansion connector for data communication with a micro-controller board and power supply
3-pin additional connector for DS1822 Digital Thermometer output
Two jumper blocks to select the communication lines with a micro-controller board
Single operating voltage: 5 VDC, 3 mA maximum supply consumption
Dimensions are 2.4 x 1.2 inches (5.88 X 2.94 centimeters)
Mounting holes of 0.125 inches (3.175 millimeters) are on four corners
0º - 70º C operating, -40º - +85º C storage temperature range
