P18 I/O Module

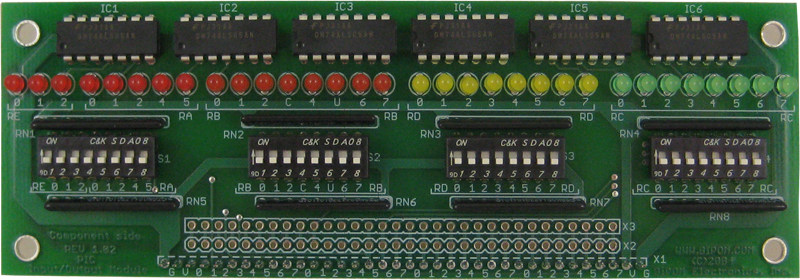

P18 I/O Module peripheral board is dedicated for the MicroTRAK training kit with a using of a Microchip PICxxx micro-controller host board. P18 I/O Module peripheral board allows access to any signal of any port of a PIC® micro-controller on the MicroTRAK development platform. P18 I/O Module peripheral board has 32 switches to control over PIC® micro-controller inputs and 32 LEDs to indicate the signals.

$39
P18 I/O Module - P18 I/O board allows access to any signal of any port of a PIC micro-controller on the MicroTRAK

Features

  • 36-pin pluggable module connector
  • Two 32-pin expansion connectors
  • 32 channel DIP top side switch to control over the PIC® micro-controller inputs
  • 32 LEDs with 74ALS05 hex inverters as input buffers
  • Single operating stabilized voltage 5VDC at 250mA maximum current
  • Dimensions are 5.95 X 1.975 inches (15.1 X 5.0 centimeters)
  • Mounting holes of 0.15 inches (3.8 millimeters) are on four corners
  • 0º - 70º C operating, -40º - +85º C storage temperature range
