Piggy

PIGGY is a small adapter that plugs on the secondary microcontroller socket ofMINI-MAX/P18 and allows program debugging through the Microchip ICD2 Debugger.

Documents Supported Microcontrollers

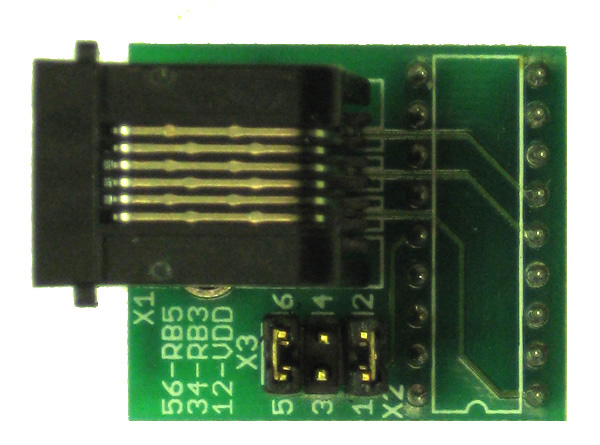

Piggy - Adapter board for using Microchip ICD2 Debugger with MINI-MAX/P18.

Microchip ICD2 Debugger

Features

6-pin modular jack ( phone jack style ) for connection to Microchip ICD2
18-pin module socket for installation on the MINI-MAX/P18
Allows access to serial programming pins of main PIC® microcontroller
Support for both 16F... and 18F... series PIC® microcontrollers

PIC® and MPASM® are registered trademarks of Microchip Technology, Inc.
