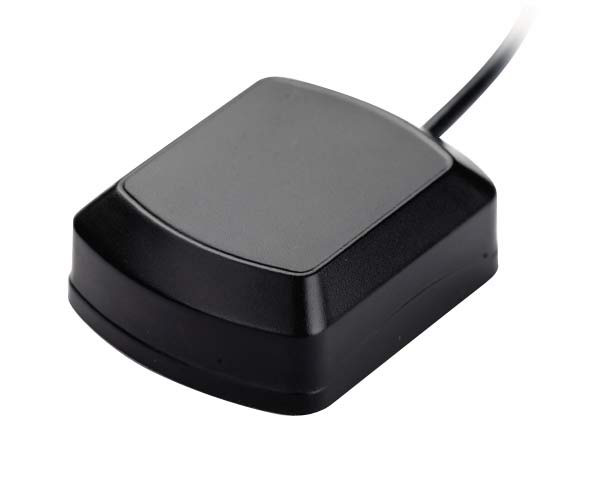

GA-GPS-01

GPS Active Antenna

GA-GPS-01 - GPS Active Antenna

Features

Size: 48x39x14mm
Dieletric Antenna
Center Frequency: 1575.42 MHz±3 MHz
V.S.W.R: 1.5 : 1
Bandwidth: ±5 MHz
Impedance: 50 ohm
Polarization Type: RHCP
LNA / Filter
LNA Gain(Without cable): 28±2 dB Typical
Noise Figure: 1.5 dB
DC Voltage: 2.2~5 V
DC current: 5~15 mA
Cable: RG174 5m / 3m / or others
Connector: SMA / SMB / MCX / or others
Housing: Black or others
Working Temp: -40 °C~+85 °C
Humidity: 55%~75%RH
Waterproof: IP67
